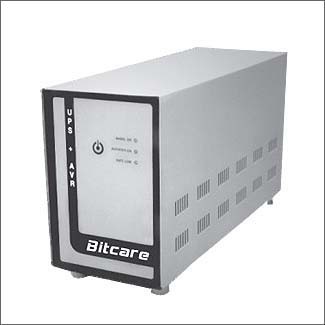

KNOW HOW IT WORKS ?
When mains power is present the processor in UPS continuously monitors it's voltage. If mains voltage is below 160v. then UPS will disconnect main supply & UPS will start within 10m sec. If mains voltage is within the range (165-275v) the AVR (Automatic Voltage Regulator) will try to maintain output voltage between 200v-250v.
SALIENT FEATURES
- Micro controller controlled
- Built in spike suppressor
- Built in 3 stage AVR
- Cold start capability
- Feather touch switches
- Line interactive technology
- Two potential CVCC, PWM Charger
TECHNICAL SPECIFICATIONS
| Input |
Voltage |
165-280 V |
| Frequency |
50 Hz ± 4% |
| Output |
Mains mode |
Voltage |
200V - 245V |
| Frequency |
Same as Input |
| Waveform |
Same as Input |
| Inverter mode |
Voltage |
230 ± 3% |
| Frequency |
50 Hz ± 2% |
| Waveform |
Quasi square wave |
|
Indications
|
Visual |
Mains on, Inverter on. Overload, Charging on, Battery low, System alert, System
sleep |
| Audio |
Start on battery, overload, Battery Low |
TROUBLESHOOTING
| INDICATIONCHECK UP |
|
MAINS PRESENT BUT NO POWER AT OUTPUT
|
| Green LED of mains is off |
Check the input switch on wall gang box, it must be on
position.
Check the input fuse on backside.
|
| Green LED of mains on |
Check the ALERT switch, it must be in Alert position.
|
|
MAINS FAIL BUT NO POWER AT OUTPUT
|
| Red LED of the Inverter is off |
Check the position of ALERT LED on front panel. It
must be ALERT position. |
| None of LED glows |
Check the connection of the battery & the link wires
between two batteries. If they are corroded then clean
them with hot water & make sure of tight contact. |
| Overload LED glows |
Reduce the load at output by switching off the switches
of Computers/ Printers. |
| Battery low LED is on |
Press the reset switch. If battery low indicator is still on,
check the connection of battery & link wires between
two batteries. If they are corroded clean them with hot
water, be sure that nut-bolts are tight. |
| MAIN PRESENT BUT CHARGING INDICATOR OFF |
Yellow LED (Charging indicator) does not glow after
battery is used. |
Check the connection of battery & link wires.
|
|
